7000 GC Flowmeter

Accurately measure flows on your GC

Click here to buy



Inconsistent flows lead to inconsistent results.

Inaccuracies and unpredictable results from your gas chromatography system can be frustrating and make you question your results. Ensuring your GC is set up the same way every time should be easy, but we know that is always the case.

Start setting flows accurately

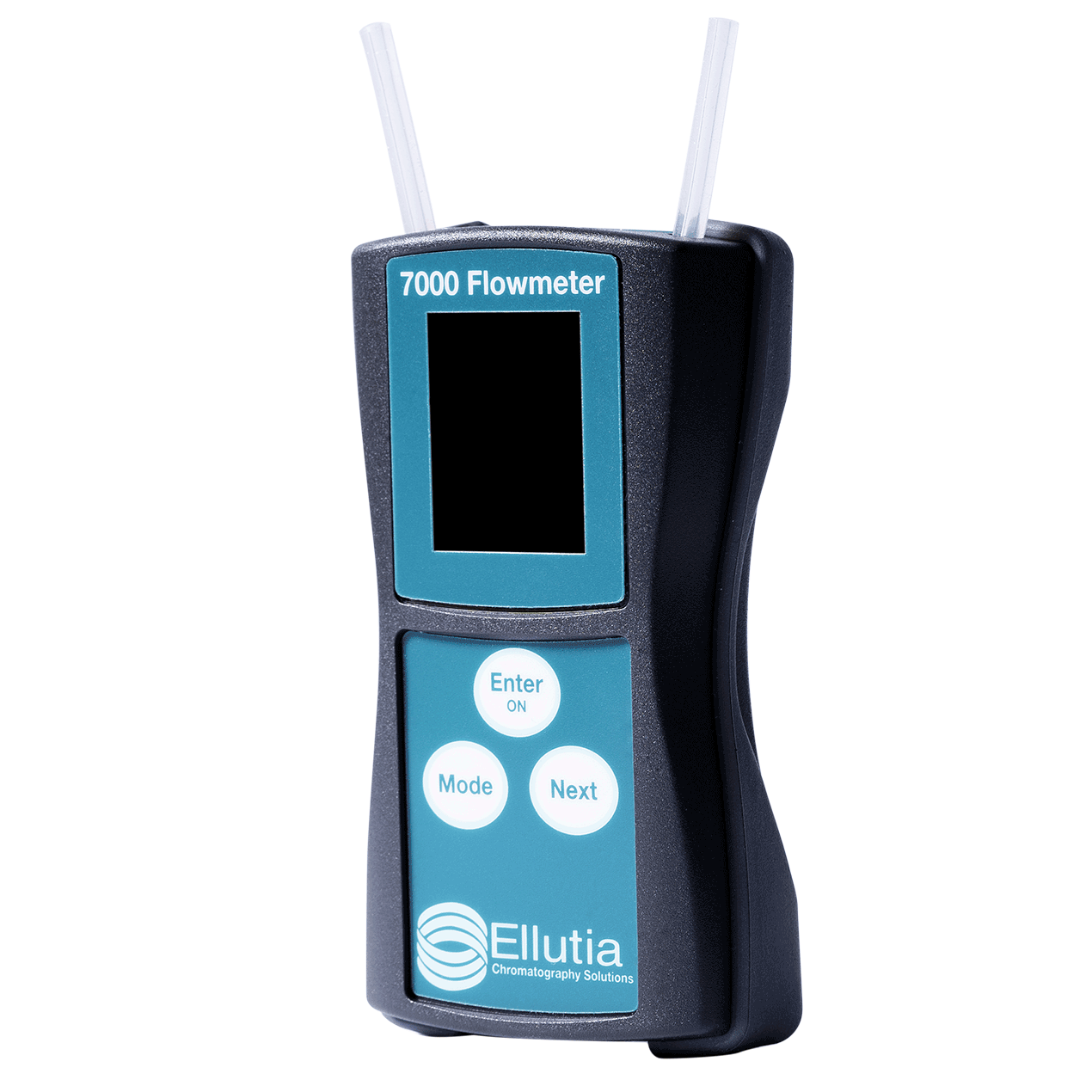

The portable and handheld 7000 GC Flowmeter has been designed specifically for use in gas chromatography. The flowmeter is calibrated for 8 of the most common gases used in GC. This allows you to accurately set carrier, split and detector flows on your system.



Measure flows

With the accuracy of ±0.4 ml/min or 2.5% of reading the 7000 Flowmeter GC can measure up to 500ml per min of:

Air, Argon, Argon/5% Methane, Helium, Hydrogen, Nitrogen, Oxygen

And up to 275ml of:

Carbon Dioxide

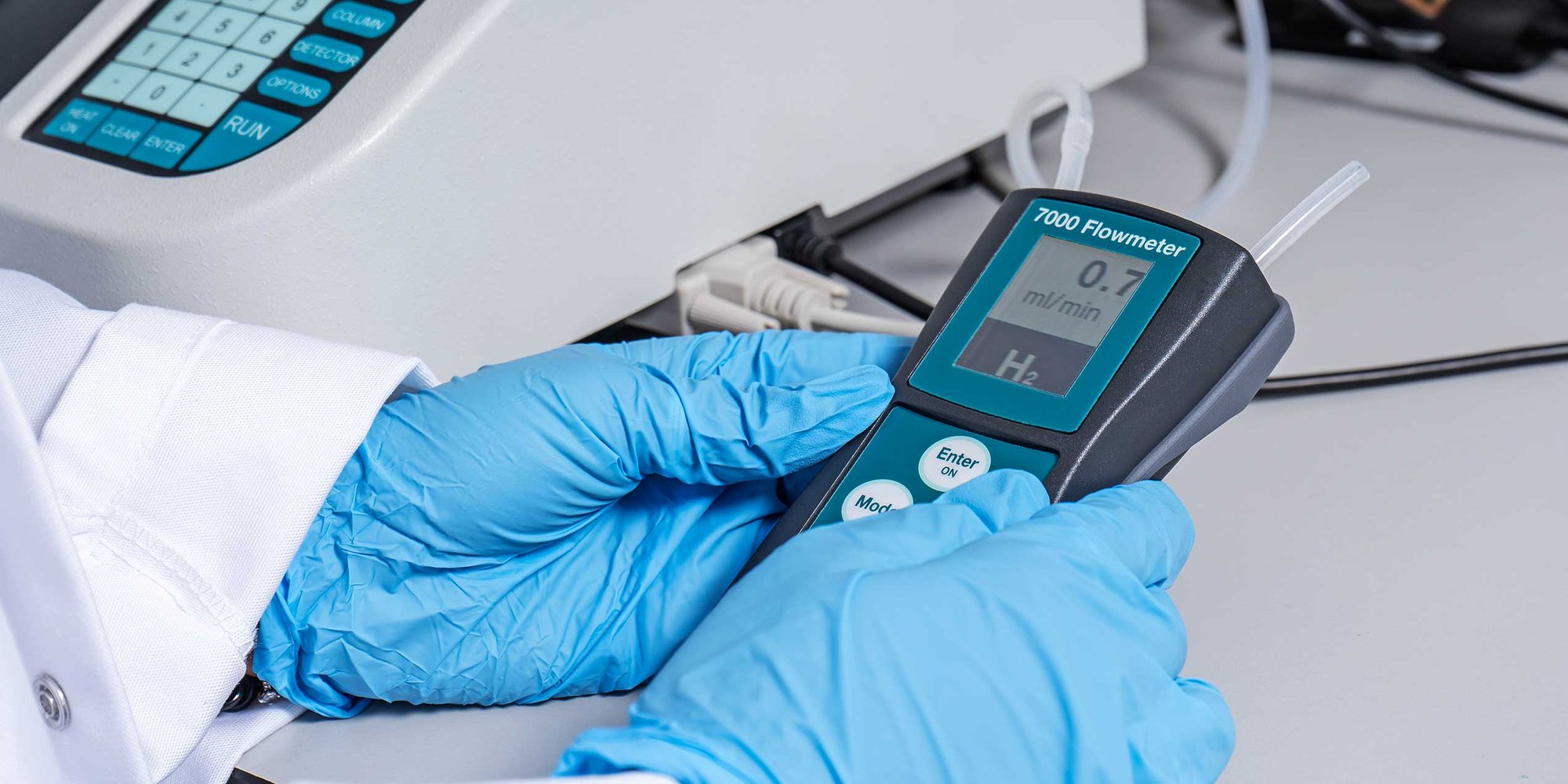

Scientist measuring flow using Ellutia Flowmeter with Gas Chromatograph-27

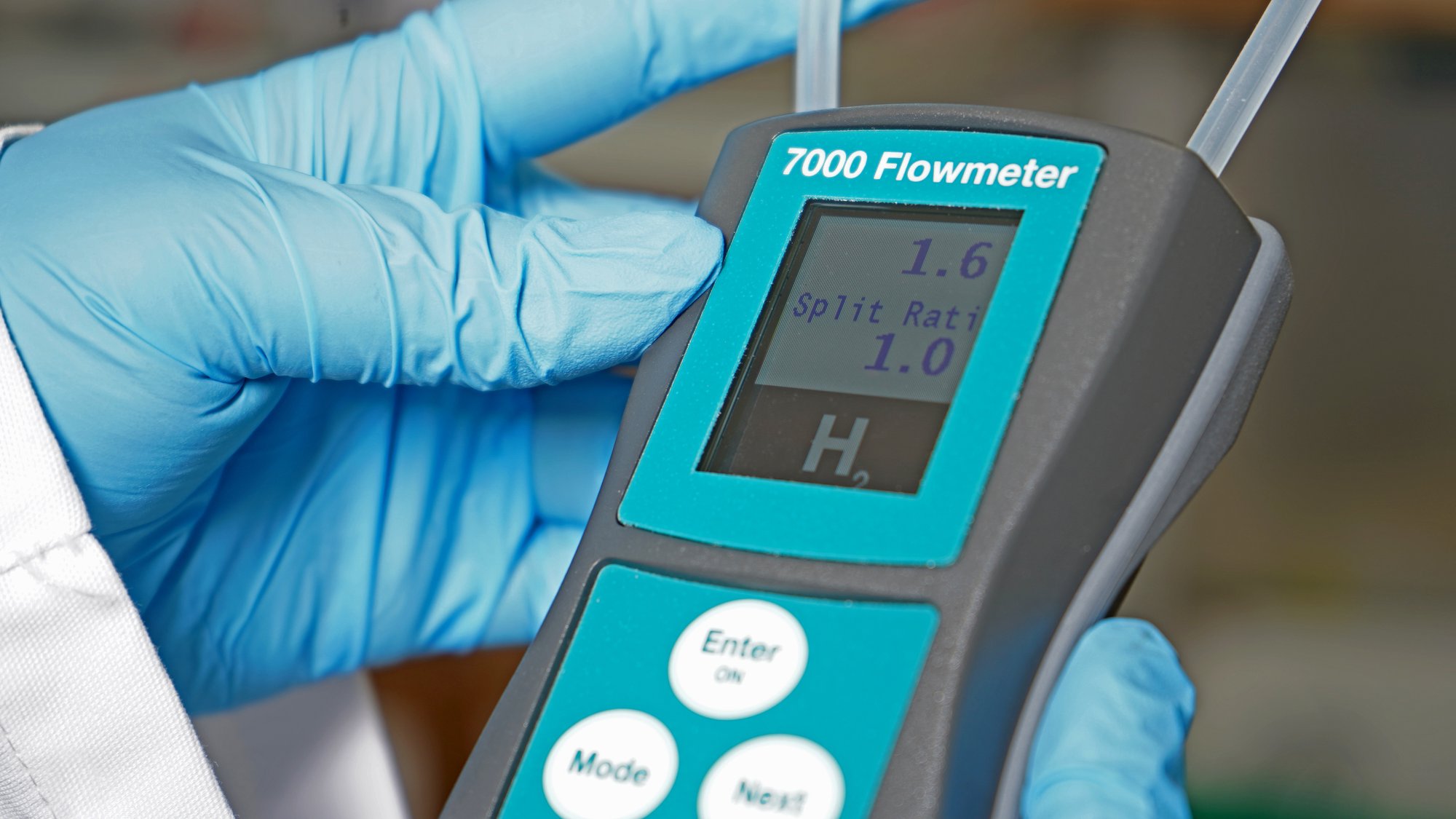

SPLIT FLOW CALCULATION

Split flow mode allows the user to measure and store a column flow, the user can then measure the split flow and the 7000 GC Flowmeter displays both the flow rate and the split ratio.



Split_Flow

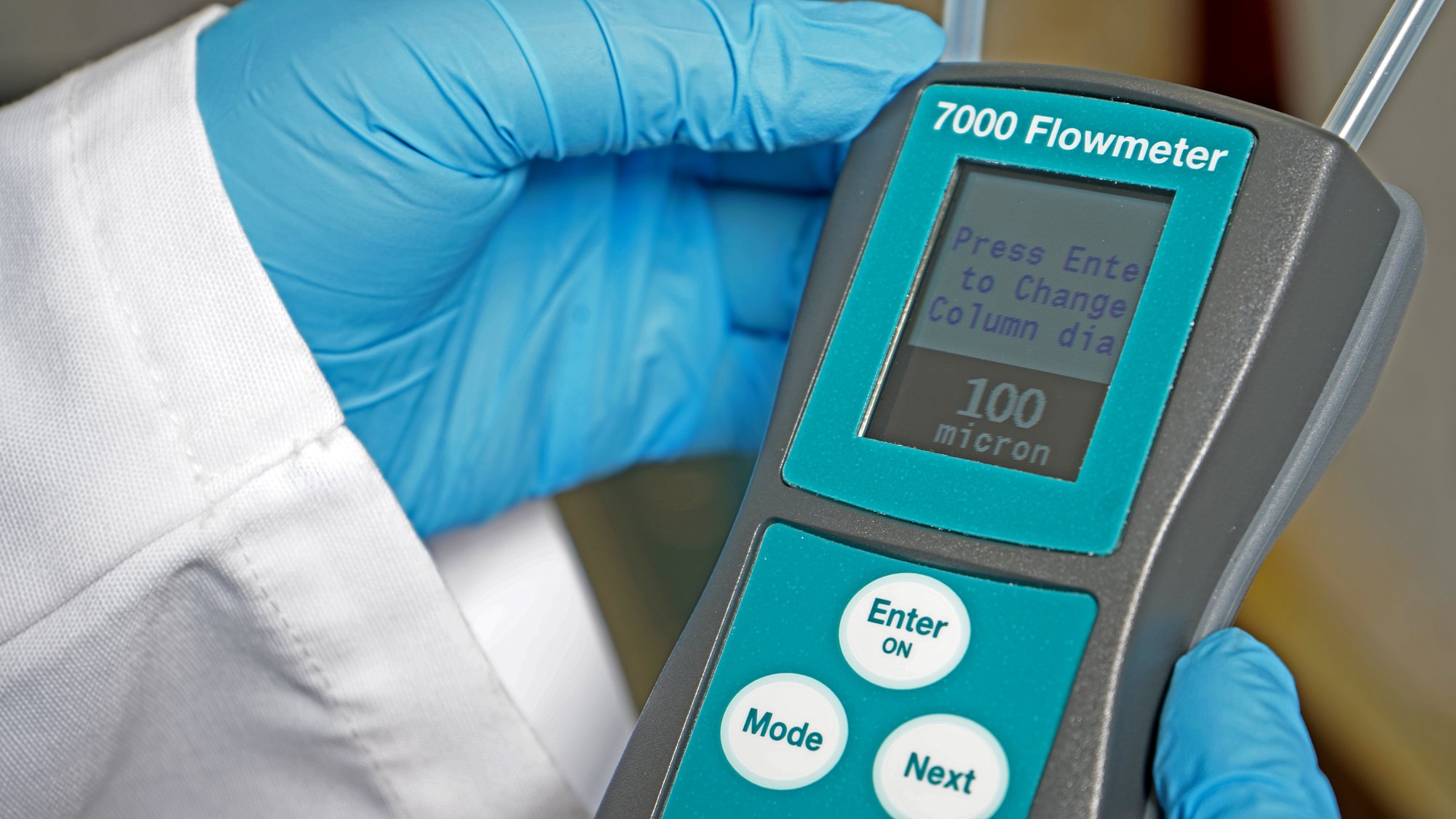

LINEAR VELOCITY

The user is able to select their column diameter in the options menu, the linear velocity can then be calculated and displayed. The user can easily switch between standard flow and linear velocity with a single button press.

Linear_Flow

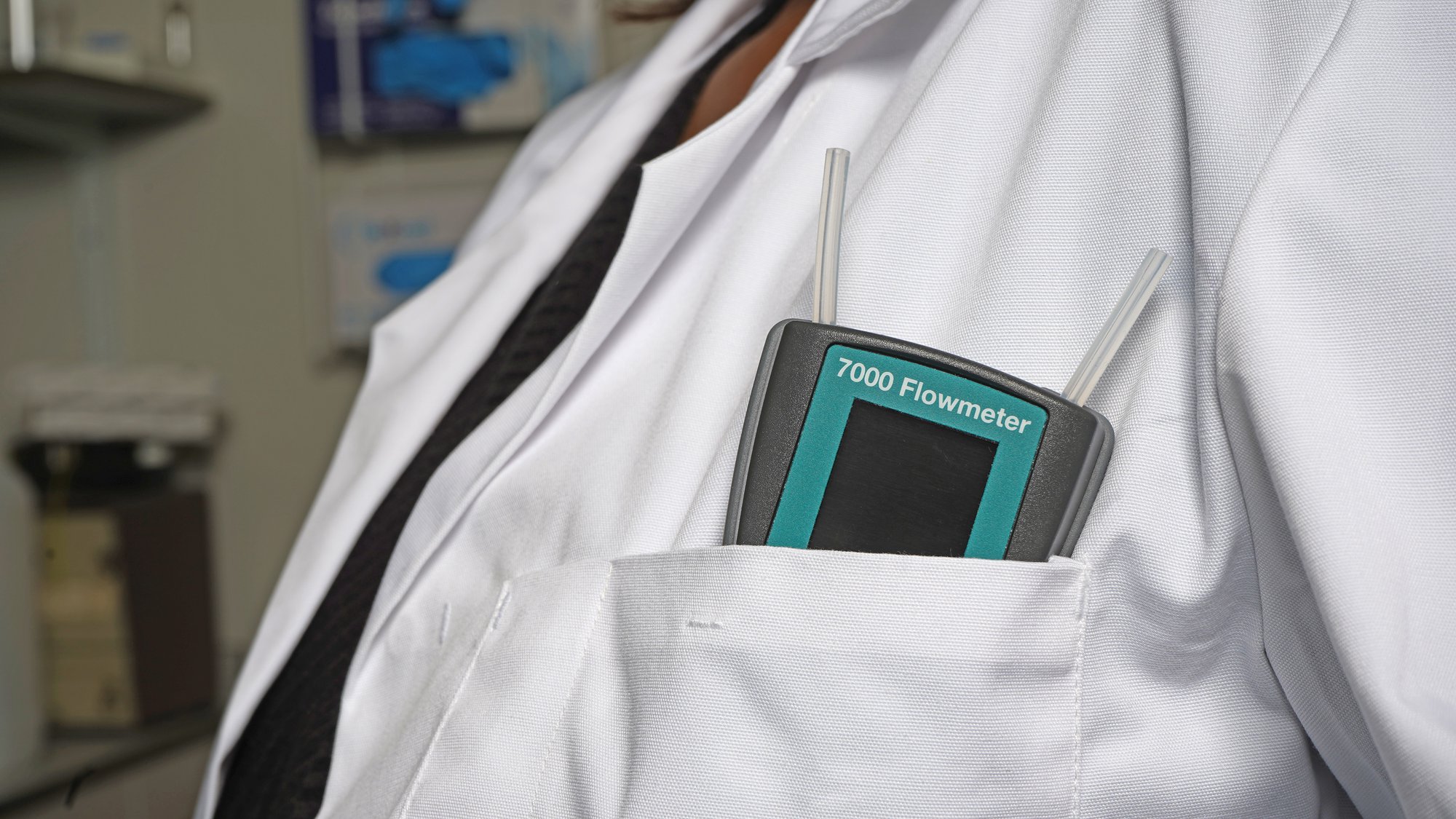

Pocket Size

Weighing only 150g and being on 68 x 130 x 30 mm in dimension the flowmeter fits in your pocket making it easy to carry between instruments.

Flowmeter_Pocket

Order your flowmeter today



PURCHASE YOUR FLOWMETER

Click here to buy





Follow our guide for easy set-up



Achieve consistent results you can trust.

Specification

Feature Spec

Range

0.1 to 500 ml/min (0.1 to 275 ml/min for Carbon Dioxide)

Resolution
0.1 ml/min

Accuracy
±0.4 ml/min or 2.5% of reading

Gases
Air, Argon, Argon/5% Methane, Carbon Dioxide, Helium, Hydrogen, Nitrogen, Oxygen

Size
68 x 130 x 30 mm

Weight:
150 g

Calibration:
Annually

Traceability
Calibration traceable to UKAS standards

Flowmeter recalibration

It is recommended that the flowmeter is calibrated once annually, to book your calibration click here

CTA Re-cal page

Download a Brochure
Very Good Product I have Used It For 20 days and I feel like it was a better option than other products.
stars 5
Abhayraj Bite
Application Area: General Gas Chromatography
Very useful, sensitive and accurate flowmeter. Pre-set to analyse flow rates of all the main gases you'll use in setting up a gas chromatograph. Makes setting gas flow rates in GC a doddle
stars 5
Daniel Driscoll - University of Surrey
Application Area: Gas chromatography
Intuitive design and simple. Average to low price compared to the renowned brands. High potential!
stars 5
J Rodarte
Measure the flow rate out of the split vent in a GC
